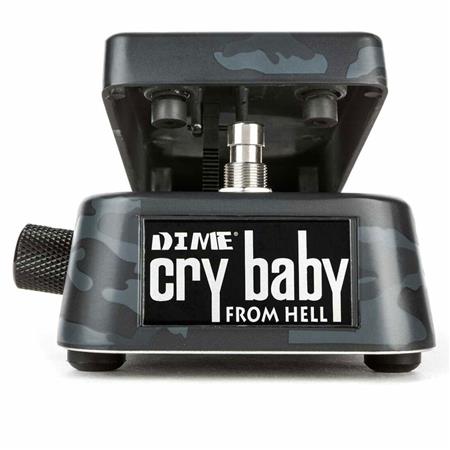

Dunlop Cry Baby Dimebag from Hell Wah Pedal

About Dunlop Dimebag Pedal The most versatile wah in our line up, this pedal was designed for players who need options on stage, featuring an extended sweep rang a 6-way frequency selector, a switchable boost, LEDs to indicate wah and boost status, and more. This pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included). The Long Story Dimebag Darrell combined a cowboy’s swagger with high-gain riffs and squealing pinch harmonic-laden leads. One of the most significant elements of his sound and dynamics was the Cry Baby Wah, and at a time when wah pedals had fallen out of fashion, Dime flew his wah flag high. Armed with his hard-earned expertise and insight from years of touring, he helped us devise the most versatile wah in our lineup: The Dime Cry Baby from Hell Wah. Work on this pedal first began some 20 years ago when Dime, a long-time user of the super customizable Cry Baby 535Q Multi-Wah, wanted even more freedom when setting up his rig on stage. Starting with the 535Q, we carried over its Q control, 6-way range selector, and adjustable kick-in boost. Next, we hot-rodded it with a wide sweep range for Dime to dig deep and fly high, a control to adjust the pedal’s toe-down frequency, an extra output for splitting your signal to a separate FX chain, and back-mounted LED indicators to conveniently show whether the wah is on and whether the boost is engaged. Finally, we replaced the standard rubber tread with skateboard skid tape so that your foot doesn’t slip on any spilled beverages. The Dime Cry Baby from Hell Wah is the ultimate wah pedal for your touring rig, and with its new black camo finish, it’ll have you wearing a black-toothed grin in no time. External Controls • FOOTSWITCH toggles effect on/bypass (green LED indicates on) • VOL knob controls amount of gain added by BOOST switch • VARIABLE Q knob controls the sharpness of the DB01’s bandpass • FINE TUNE knob shapes tone of toe-down position • BOOST switch increases output as set by the VOLUME knob (indicated by red LED) • RANGE SELECTOR determines frequency center of WAH Adjustable Rocker Tension Located under the rocker at the heel of the pedal is an adjustable torque clutch that allows the amount of resistance the rocker has to being moved. Turn clockwise to increase resistance or counterclockwise to decrease resistance. Switchable Output Jacks The DB01’s OUTPUT/INPUT jack works in either Parallel Mode or Pass Through Mode using the internal JP2 switch (see Diagram B). In the default Parallel Mode (JP2 switch UP), both the OUTPUT and OUTPUT/INPUT jacks function as parallel outputs, each receiving your affected signal. This mode is useful for splitting the DB01’s signal to two separate effects chains. In Pass Through Mode (JP2 switch DOWN), only the OUTPUT jack receives the affected signal, while the OUTPUT/ INPUT jack receives your clean, unaffected signal. This is useful for sending your dry signal to a tuner outside of your effects chain. Dunlop Dimebag Pedal Features Featuring an extended sweep rang a 6-way frequency selector Pedal was designed for players who need options on stage A switchable boost, LEDs to indicate wah and boost status, and more Q control 6-way range selector Adjustable kick-in boost Requires a 9V battery or AC adapter COMPATIBILITY Designed for use with: Guitar Pedal
